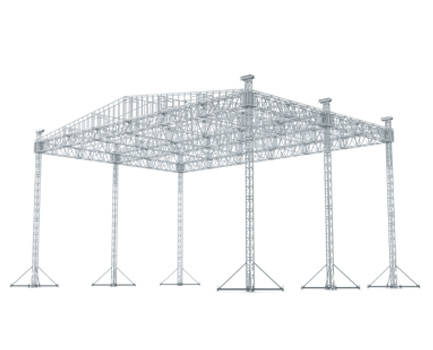

The 45 x 45 ladder roof is one of the newer additions to TOMCAT
roof systems and is designed to meet customer demands
for economy of shipping space without sacrificing loading
capabilities. Constructed with an optional perimeter of folding
20.5” x 30” truss, it uses a system of single truss ladders to
form the internal grid. The ladders are joined by TOMCAT’s own
unique intersection spigot connection. The use of the folding
box truss, along with the ladder grid, allows for compact
shipping and storage. Due to its unique design, a maximum
uniformly distributed load of 16,000 pounds
(7,257 kg) is still provided.
