45 x 45 Ladder roof with PA wings

Share
45 x 45 Ladder roof with PA wings

Call us for offer

Get your quote

Download PDF

Basic info

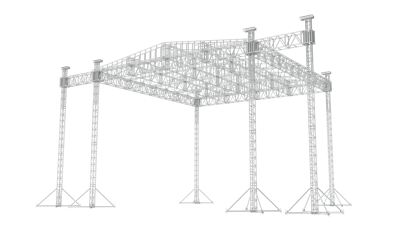

The 45 x 45 ladder roof is one of the newer additions to TOMCAT
roof systems and is designed to meet customer demands
for economy of shipping space without sacrificing loading
capabilities. Constructed with an optional perimeter of folding
20.5” x 30” truss, it uses a system of single truss ladders to
form the internal grid. The ladders are joined by TOMCAT’s own
unique intersection spigot connection. The use of the folding box
truss, along with the ladder grid, allows for compact shipping
and storage. Due to its unique design, a maximum uniformly
distributed load of 51,000 pounds (23,133 kg) is still provided.
It also provides a safe operating wind speed of up to 67 mph.
