64X40 BFT ROOF

Share
64X40 BFT ROOF

Call us for offer

Get your quote

Technical information

  • Load Capacity – 60,000lbs UDL
  • Safe Operating Wind Speed – 67mph

Download PDF

Basic info

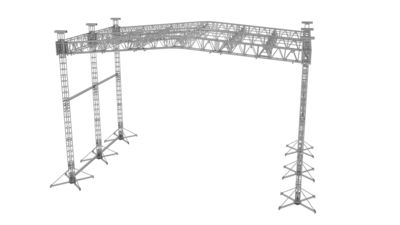

Standing for Big Frame Truss, this roof design is true to its
name as it features 26” x 36” crossstage truss,  26” x 43” end
truss and folding 26” triangle truss as the up-stage/down-
stage part of the grid. The system utilizes 16” x 16” towers.
The general dimensions of the BFT are 60’ x 40’ (18.29 m
x 12.19 m), not including the optional PA wings. It claims a
safe operating wind speed of up to 67 mph and the live loads
(equipment loads) that can be applied to the system include
a 60,000 pound (27,216 kg) uniformly distributed load (UDL)
on the main grid - making it the right choice for a range of
applications.
