Skjonberg

Call us for offer

Get your quote

Technical information

Runs up to 4 hoists

  • 30 amp Hubbell power input connector
  • Hubbell power and control output connectors
  • 50 amp main emergency disconnect contactors

Download PDF

Basic info

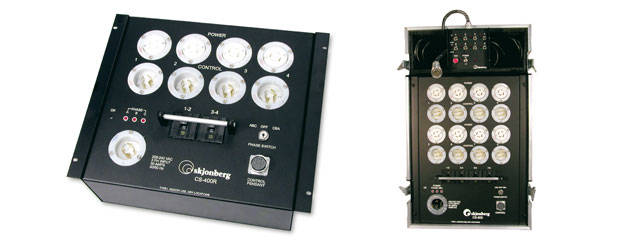

The CS-400R is the perfect choice for a growing company. Four chain motors can be operated individually or in unison. Both power distribution and relay control for the hoist resides in the same compact unit. The basic design runs 3 phase motors at 208V-220V. A 30 amp Hubbell Twistlock input provides adequate current to run four 1hp motors. Each circuit breaker protects 2 motors. The CS-400RS is able to run most single phase motors. Manual hoist selection and operation is accomplished using our Remote Manual Run Handsets. A basic package would include our P4-CS-SQ-AK25, a 4 channel remote with a 25 ft remote cable hardwired into the handset. The CS-800 enables eight chain motors to be run individually or in unison. Both power distribution and relay control for the hoist resides in the same compact unit. The basic design runs 3 phase motors at 208V-220V. The 50 amp input provides adequate current to run (8) 1hp motors. Each of the 4 circuit breakers protects 2 motors.
The CS-800’s fully enclosed chassis can be mounted onto truss using half couplers, mounted into a CS model road case, or can be installed into any standard rack. Single units can be packaged together to form larger control groups. The CS-800 can also provide a relay control interface between the CHCII computer and the motors.
Manual hoist selection and running is accomplished using any of our Remote Manual Run Handsets. A typical package is shown with our P8-CS-SQ-AK25 remote with 25 ft remote cable hardwired into the handset.
