64 x 40 BFT with PA wings

Share
64 x 40 BFT with PA wings

Call us for offer

Get your quote

Technical information

  • Load Capacity – 60,000lbs UDL
  • Safe Operating Wind Speed – 67mph

Download PDF

Basic info

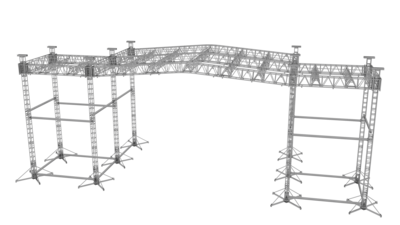

Standing for "Big Frame Truss", this BTF roof design with PA
wings is true to its name as it features 26” x 36” crossstage
truss,  26” x 43” end truss and folding 26” triangle truss
as the up-stage/down-stage part of the grid. The system
utilizes 16” x 16” towers. The general dimensions of the BFT
are 60’ x 40’ (18.29 m x 12.19 m), plus 20' x 20' PA wings on
each side. It provides a safe operating wind speed of up to
67 mph and the live loads (equipment loads) that can be
applied to the system include a 60,000 pound (27,216 kg)
uniformly distributed load (UDL) on the main grid and
a 24,000 pound (10,886 kg) speaker load on each PA Wing -
making it the right choice for a range of applications.
