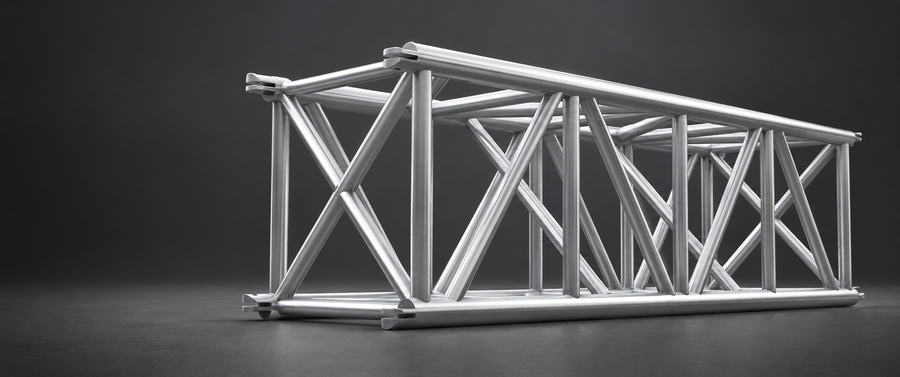

JTE SuperMegaTruss & Tower 30″ × 30″
YOUR PROJECT. MADE SUPERMEGA EASY.
Meet JTE SuperMegaTruss & Tower 30″ × 30″—a behemoth built for demanding applications. Designed for heavy loading and height requirements, it works as horizontal truss or a vertical tower, giving you strength and flexibility—and looking good while doing it.
DISCUSS YOUR PROJECT
From live event infrastructure to industrial support, research and testing structures, and piping and water-transfer applications, SuperMegaTruss opens up possibilities beyond entertainment.
What are you supporting? How high does it need to go? What needs to stay clear underneath? Bring us the challenge, and let’s explore a solution.
BIG CHALLENGES. CUSTOM SOLUTIONS.
Demanding testing applications need a structure built around the task.
This custom structure uses JTE SuperMegaTruss to support a specialized testing system—showing how truss can meet challenges beyond live entertainment.
Have an unusual load, height, or configuration requirement? Let’s talk about what your project needs.
STRENGTH WITH OPTIONS.
-
Truss or Tower: Address horizontal spans and vertical support needs with one product family.
-
Heavy-Duty Construction: Built from 6061-T6 aluminum for demanding loading and height requirements.
-
Multiple Configurations: Explore standalone towers, goal posts, and four-post grids to suit your project requirements.
-
A Range of Components: Standard sections, corner gates, three-way gates, and a sleeve block support different system configurations.
TECHNICAL HIGHLIGHTS
-
Profile: 30″ × 30″
-
Material: 6061-T6 aluminum
-
Main Chords: 3″ OD × ¼″ wall
-
Diagonal Tubes: 2″ × 0.157″
-
Standard Lengths: 5′, 8′, 10′, 12′, and 20′
-
Documentation: Truss load tables, tower-height information, component details, and section weights available in the technical sheet.
WHAT DO YOU NEED TO SUPPORT?
Tell us what you’re planning. Share your load requirements, span or height, and any sketches you have—or start with a conversation. We’ll help evaluate a configuration for your application.
DISCUSS YOUR PROJECT
View Specifications & Load Data
Explore more truss and support solutions from James Thomas Engineering at www.jthomaseng.com.
